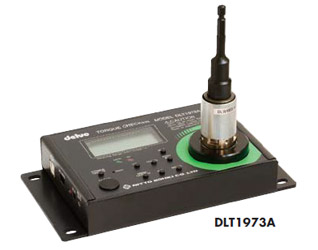

DLT1973A

Delvo Catalogue

(4.51 MB)

Download PDF

(297.89 KB)

Maintaining high assembly quality with ease

Specifications

Measurement Range: 4.00 - 12.00 Nm
Calibration Precision: Within ± 0.5%
(Full Scale)
Display: 4-digit digital display (Single-line) Data sampling : 1,000 times/sec. Display rate : 12 times/sec.
Measuring Unit: kgf cm, Nm, lbf in (selectable)
Data Memory: 800 pieces of data
Measuring Direction: CW and CCW
Measuring Mode: 3 modes : PD-TR-PP
Auto Power Off: Power off if left untouched for 10 minutes
External Output: As per USB output Mitsutoyo Digimatic
Analog Output: Approx. 1.1 V max.
Cont. Operation Time: 20 hours
External Dimensions: W200 × D112 × H48.5 mm
Mass (Weight): 1.4 kg
Rechargeable Battery: Nickel metal hydride battery
Charger Type: DLE1833A
Input Voltage for Charger: 100 - 240 V AC, 50/60 Hz
Charging Time: 4 hours
Standard Accessories:

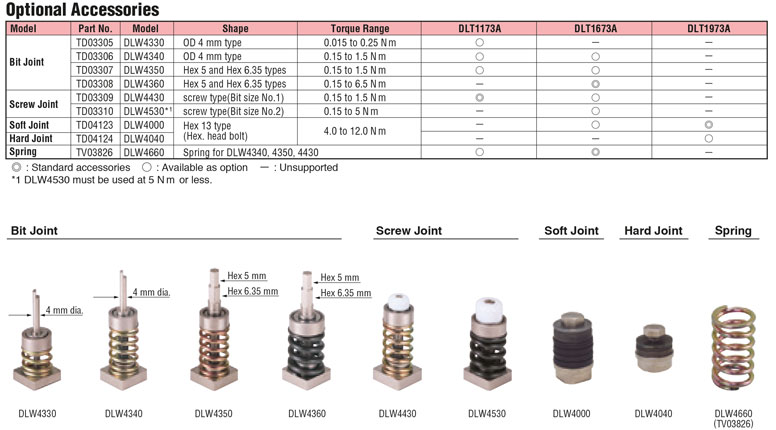

Optional Accessories
