DLV45S12L-AY

DLV45S12L-AY


Click here to get your individual offer

Delvo Catalogue

(7.65 MB)

Download PDF

(2.78 MB)

Multifunction incorporating brushless motors

  • Automatic Speed Control
  • Built-in Screw Count Function
  • Auto Reverse Feature
  • Motion Settings Programmable

Specifications

Starting Method: Lever Start
Free Speed: 530 - 1,200 min -1
Torque: 2.0 - 4.5 Nm
Screw Size (Machine Screw): 4.5 - 6.0 mm
Screw Size (Tapping Screw): 4.0 - 5.0 mm
Mass (Weight): 860 g
Voltage: 40 V DC
Standard Accessories:

Bit No.2 x 7 x 75: 1 pc.
Suspension Bail: 1 pc.
Connection cord DLW9073: 1 pc.
Low Torque Spring: 1 pc.

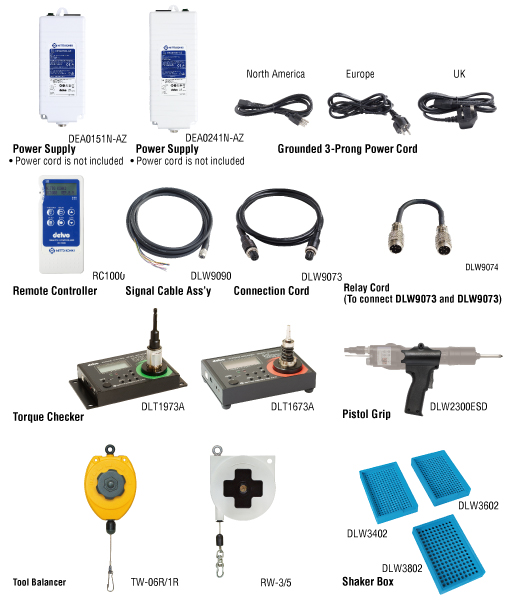

Optional Accessories

Bit Type (mm)
DLV45S12L-AY

Power Supply

DLV45S12L-AY
Controller
Built-in
