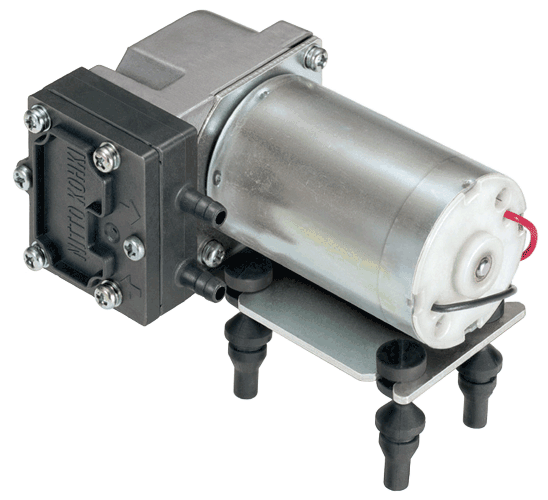

DP 0105

DP 0105


Click here to get your individual offer

Download PDF

(202.49 KB)

Specifications

Attainable Vacuum: -666 mbar
Free Air Displacement: 2.8 l/min
Rated Voltage: 12 V
24 V
Maximum Pressure: 2.5 bar
Maximum Current: 1.2A or less for 12V
0.6A or less for 24V
Duty Cycle: 30 minutes
Life Expectancy: 1.000 h
Outlet (Inlet): 5mm O.D. straight nipple
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 42 x 24.5 mm
Gross Weight: 0.36 kg

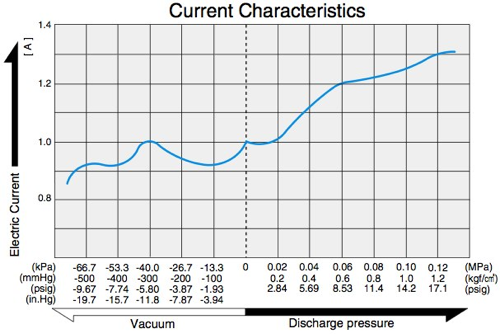

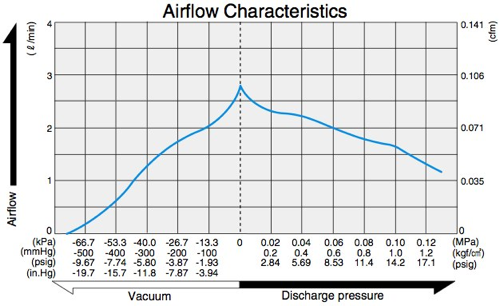

Airflow & Power Consumption
(click to enlarge)

12V / 24V

DP 0105

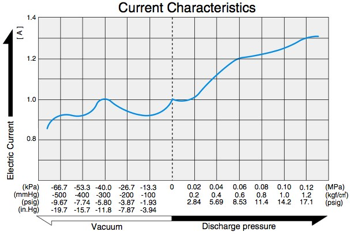

12V

DP 0105

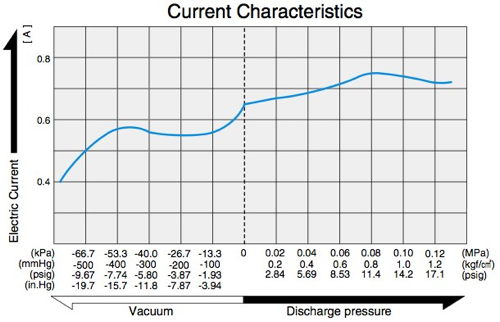

24V

DP 0105

Application Examples

Endoscopes
Vending Machines

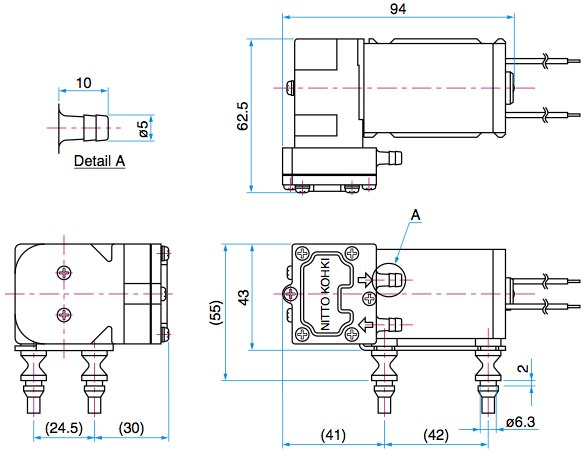

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0105
