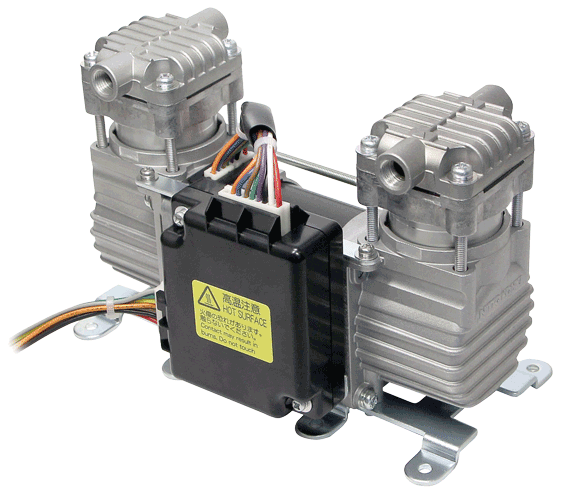

DP 0410T

Download PDF

(664.66 KB)

Specifications

Attainable Vacuum: -773 mbar
Free Air Displacement: 34 l/min
Rated Voltage: 24 V
Maximum Pressure: 1.5 bar
Maximum Current: 2,5-4.0 A
Duty Cycle: Continuous
Life Expectancy: 5.000 h
Outlet (Inlet): Rc 1/8
Coil Insulation Class: E type equivalent
Mounting Dimensions (L x W): 166 x 84mm
Gross Weight: 1,6 kg

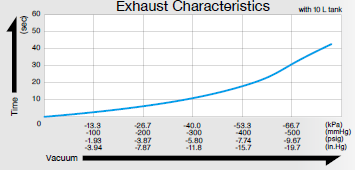

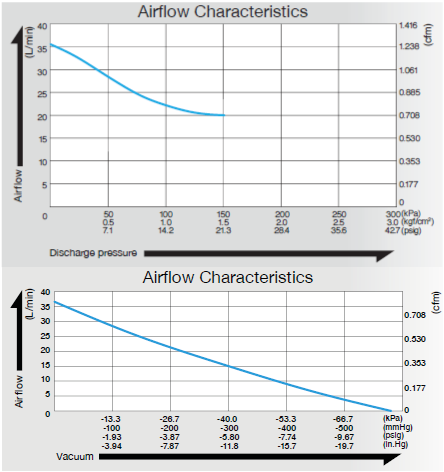

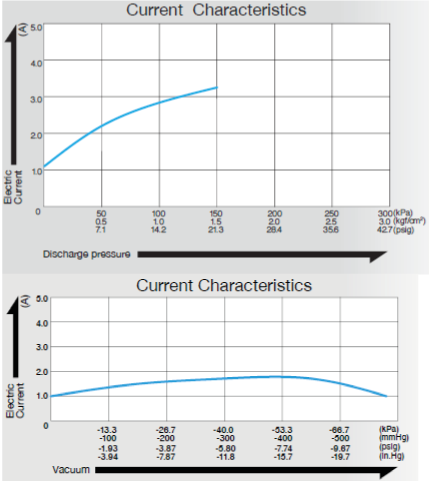

Airflow & Power Consumption
(click to enlarge)

24V

24V

24V

Application Examples

Endoscopes

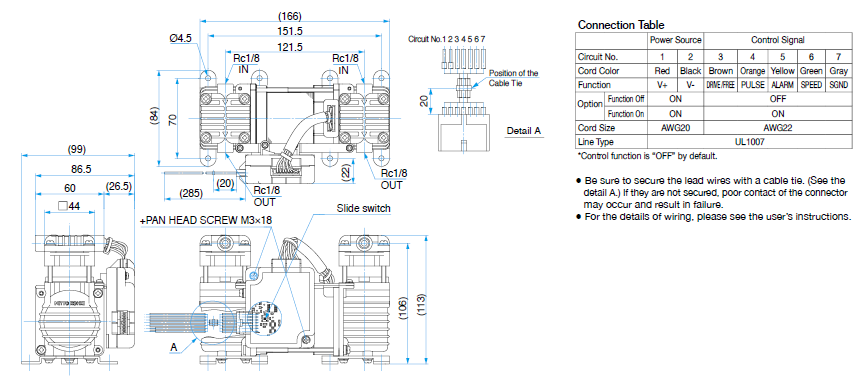

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0410T
