DLV10C10L_AY

Delvo Catalogue

(7.65 MB)

Download PDF

(3.64 MB)

Features of the Current Control Type:
  • Easy fastening setting by controller
  • Current Controlled Torque System suitable for screw fastening work
  • Low-voltage brushless motor
  • ESD (electrostatic discharge) protection structure
  • For both hand-held / automatic machines
  • Controller has built in counting function - Preventing human errors

    Specifications

    Starting Method: Lever Start
    Free Speed: 600 - 1000 min -1
    Torque: 0.2 - 1 Nm
    Screw Size (Machine Screw): 1.6 - 3.5 mm
    Screw Size (Tapping Screw): 1.8 - 4.0 mm
    Mass (Weight): 370 g
    Voltage: 24 V DC
    Power Consumption: Approx. 30 W (rotating)

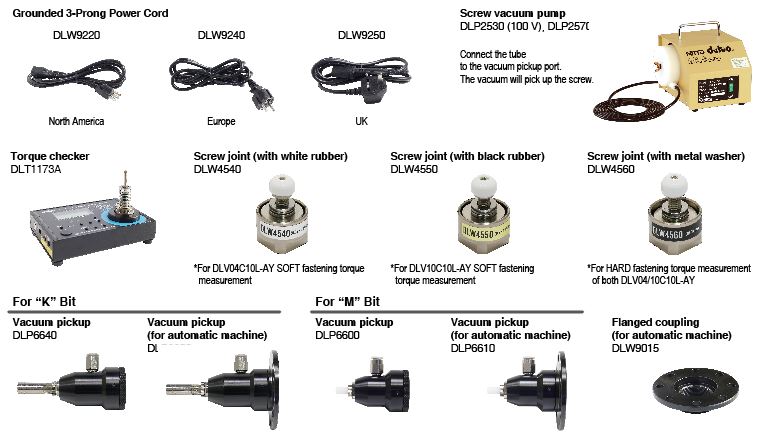

    Optional Accessories

    Bit Type (mm)

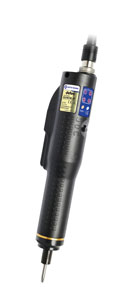

    DLV10C10L_AY

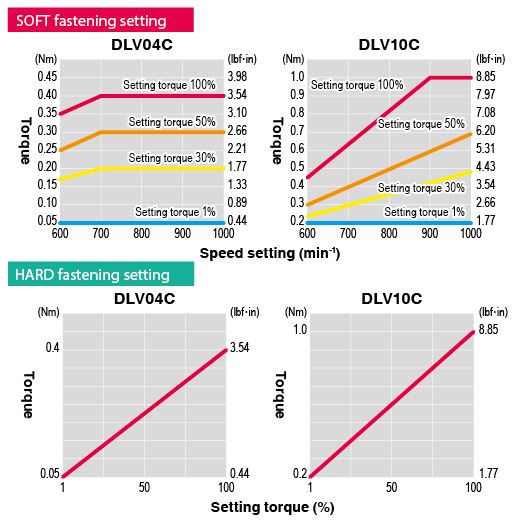

    Torque Diagrams (for reference)

    DLV10C10L_AY

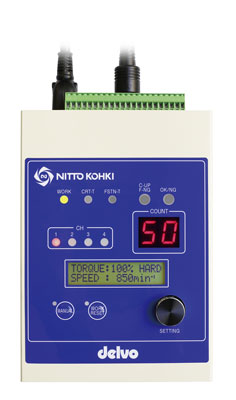

    Controller
    DLV10C10L_AY

    DCC0101x-AZ
    Input Voltage: 100-240 V AC, 50/60 Hz
    Operation Channel Function: Torque and speed setting in 4-channel memory
    Can switch to any operation channel
    Count Function: Tracks screws fastened
    Workpiece detector can be incorporated
    External Start up Control Function: Start up control can be enabled by external input signal
    Input Signal Method: Photocoupler input
    (24 V DC drive (5 mA/1 input), respond to PNP output)
    Output Signal Method: Photocoupler output
    (30 V DC or less, 30 mA/1 output or less, PNP output method)
    Service Power Source: 24 V DC (Maximum capacity 200 mA)
    Power consumption: When on standby: 20 W
    During electric screwdriver rotation (rated): 30 W
    Mass: 1,1 kg
    Power Cord (Optional): DLW9220 / DLW9240 / DLW9250
