DLV5840U

Delvo Catalogue

(7.65 MB)

Download PDF

(928.19 KB)

In response of the needs of cell production system space-saving DELVO screwdrivers are released. Controller is designed for emphasis on space-saving size and lightness.

  • Clear disengagement of clutch (low-shock mechanism unavailable)
  • Grounded bit installation mechanism
  • ESD (electrostatic discharge) protection
  • New lever is adopted
  • Low swing bit mechanism
  • Low voltage transformerless controller

Specifications

Starting Method: Lever Start
Free Speed: 450-600 min -1
Torque: 0.15 - 0.4 Nm
Screw Size (Machine Screw): 1.6 - 2.6 mm
Screw Size (Tapping Screw): 1.4 - 2.3 mm
Mass (Weight): 230 g
Voltage: 40 V DC
Power Consumption: Approx. 10 W

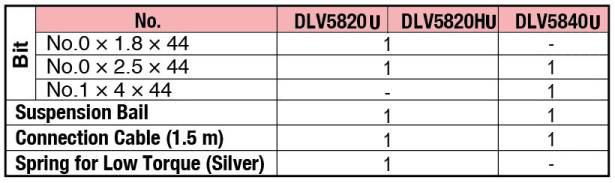

Standard Accessories:

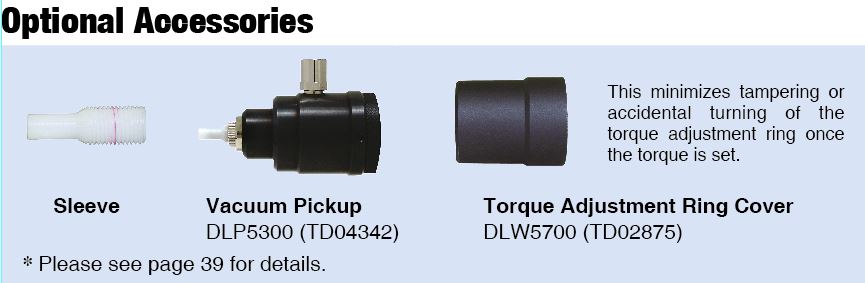

Optional Accessories

Bit Type (mm)
DLV5840U

Torque Diagrams (for reference)

DLV5840U
Controller
DLV5840U

DLC0350GG
Input Voltage: 230 V AC, 50/60 Hz
Plug: EUROPE
Mass: 230 g
