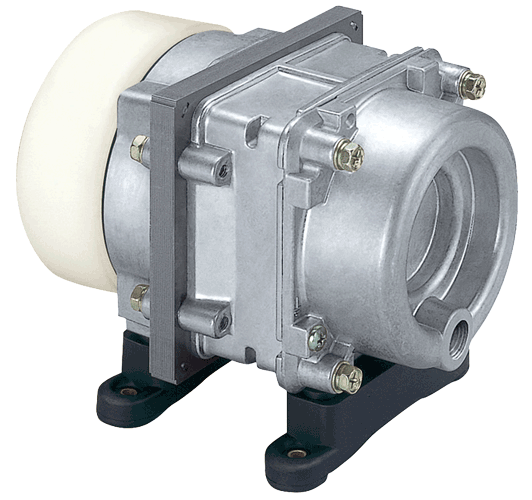

AC 0401A

AC 0401A


Click here to get your individual offer

Download PDF

(132.86 KB)

Specifications

Rated Pressure: 0.1 bar
Rated Airflow: 35 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.35 bar
Power Consumption: 38 W
35 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 1.9 kg
Leadwire Length: 200 mm

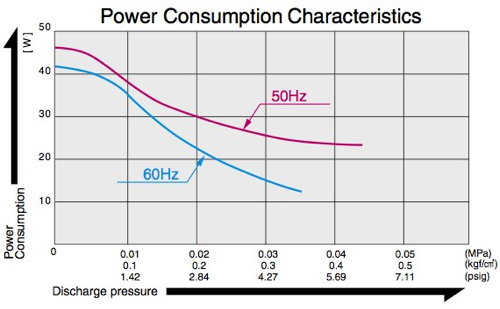

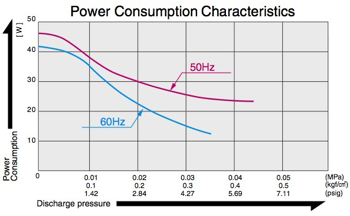

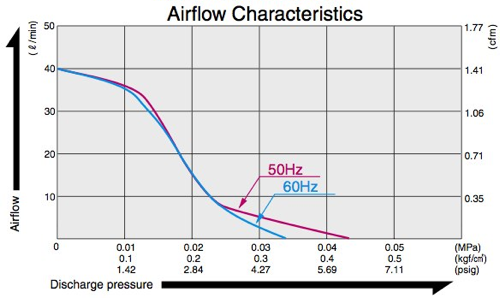

Airflow & Power Consumption
(click to enlarge)

AC 0401A
AC 0401A

Application Examples

Bed Sore Preventer
Air Bearing

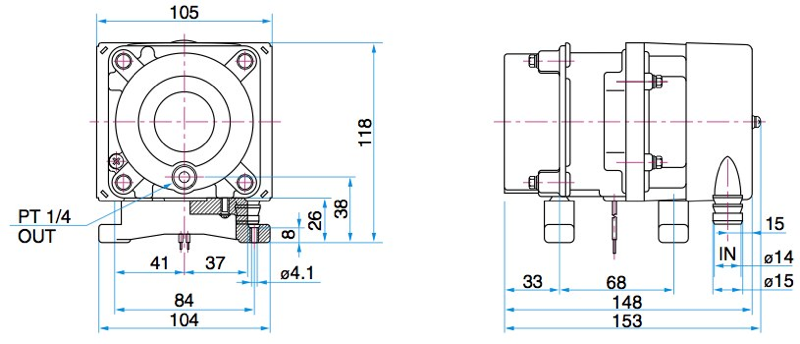

Sketch Drawing and Mounting Dimensions Diagram (mm)

AC 0401A
