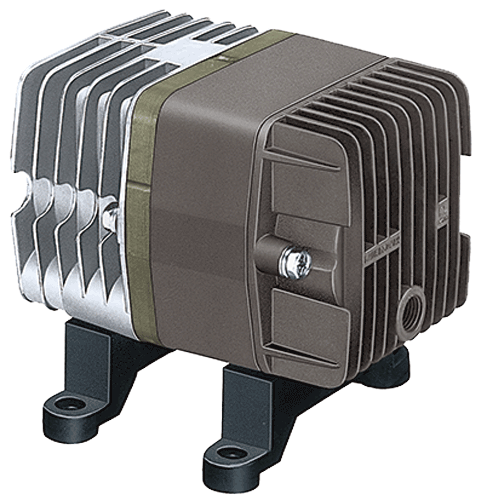

AC 0410A

Download PDF

(154.92 KB)

Specifications

Rated Pressure:	1.0 bar
Rated Airflow:	5 l/min
Rated Voltage:	230 V 120 V
Maximum Pressure:	1.3 bar
Power Consumption:	43 W 39 W
Rated Frequency:	50 Hz 60 Hz
Life Expectancy:	3.000 h
Outlet:	ISO Rc 1/4 female threaded
Duty Cycle:	Continuous
Coil Insulation Class:	E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W):	68 x 98 mm
Gross Weight:	2.1 kg
Leadwire Length:	220 mm or 200 mm

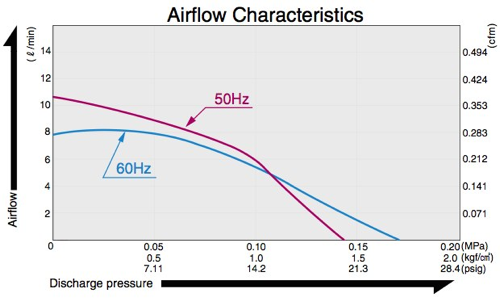

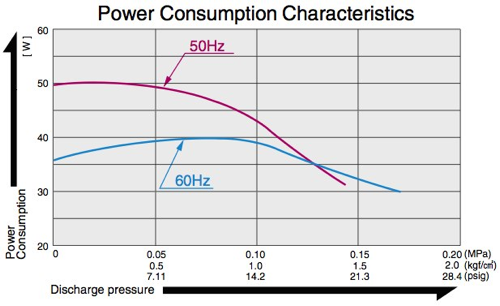

Airflow & Power Consumption
(click to enlarge)

Application Examples

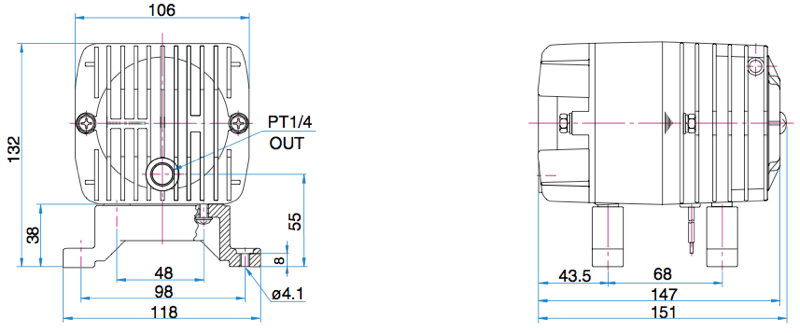

Sketch Drawing and Mounting Dimensions Diagram (mm)
