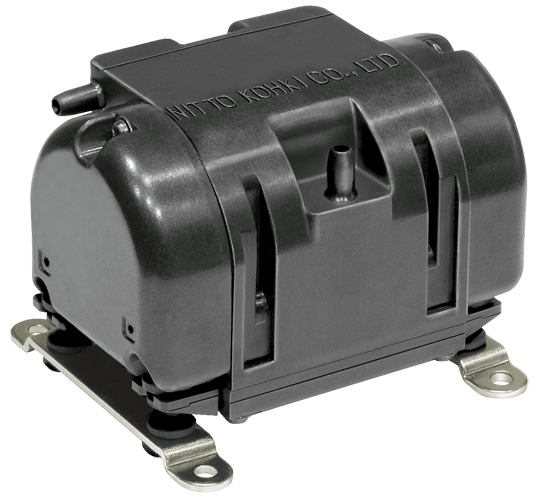

VC 0100 (Dual)

Download PDF

(201.76 KB)

Specifications

Attainable Vacuum: -147 mbar
Rated Airflow: 6 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.16 bar
Rated Pressure: 0.04 bar
Power Consumption: 6 W
6 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 5.000 h
Working Pressure Range: -147 mbar to 0.16 bar
Outlet (Inlet): 6mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: E for 230V or its equivalent (JETL)
A for 120V or its equivalent (JETL)
Mounting Dimensions (L x W): 70 x 72 mm
Gross Weight: 0.45 kg
Leadwire Length: 300 mm

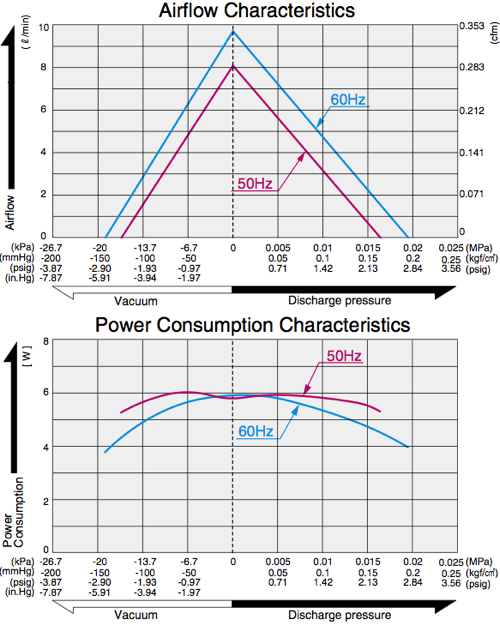

Airflow & Power Consumption
(click to enlarge)

Application Examples

Massage Devices
Bed Sore Preventer

Sketch Drawing and Mounting Dimensions Diagram (mm)

VC 0100 (Dual)
