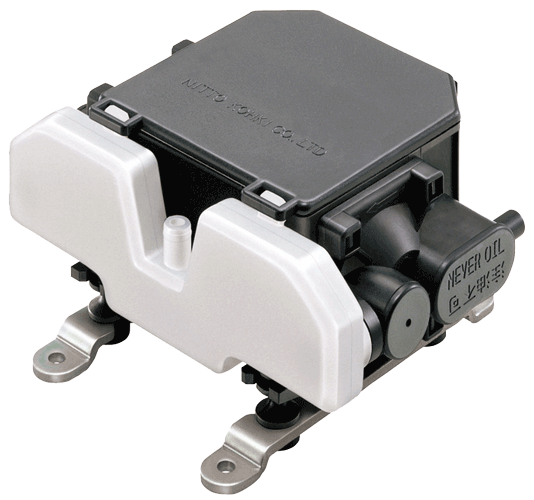

VC 0101 (Blower)

Download PDF

(202.39 KB)

Specifications

Attainable Vacuum: n/a
Rated Airflow: 10 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.2 bar
Rated Pressure: 0.1 bar
Power Consumption: 11 W
11 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Working Pressure Range: 0 to 0.2 bar
Outlet (Inlet): 7.5mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: B for 230V & A for 120V or its equivalent (JETL)
Mounting Dimensions (L x W): 66 x 100 mm
Gross Weight: 0.82 kg
Leadwire Length: 200 mm

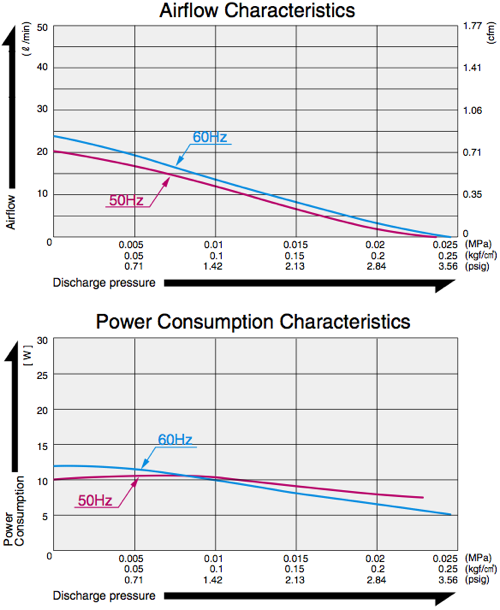

Airflow & Power Consumption
(click to enlarge)

Application Examples

Massage Devices
Bed Sore Preventer

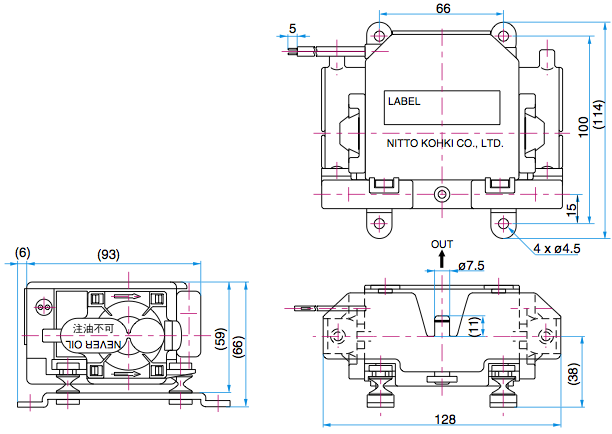

Sketch Drawing and Mounting Dimensions Diagram (mm)

VC 0101 (Blower)
