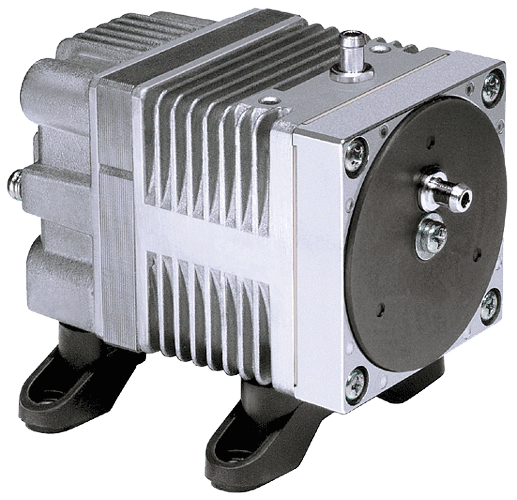

VP 0140

Download PDF

(216.71 KB)

Specifications

Attainable Vacuum: -533 mbar
Free Air Displacement: 3 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 15 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 5.000 h
Inlet: 6 mm O.D. hose nipple
Outlet: 6 mm O.D. hose nipple
Duty Cycle: 60 minutes
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

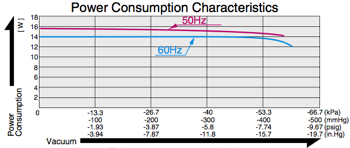

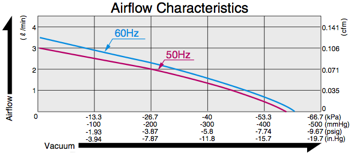

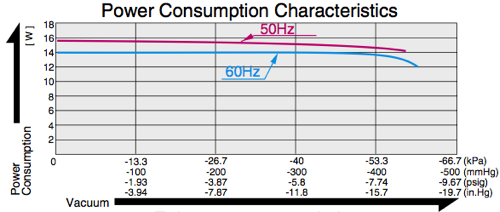

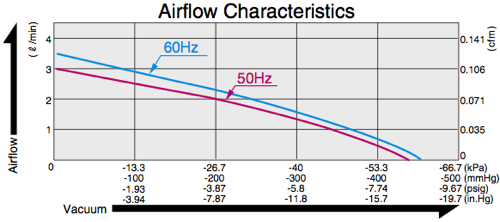

Airflow & Power Consumption
(click to enlarge)

Application Examples

Page Scroller
Solder Fume Suction

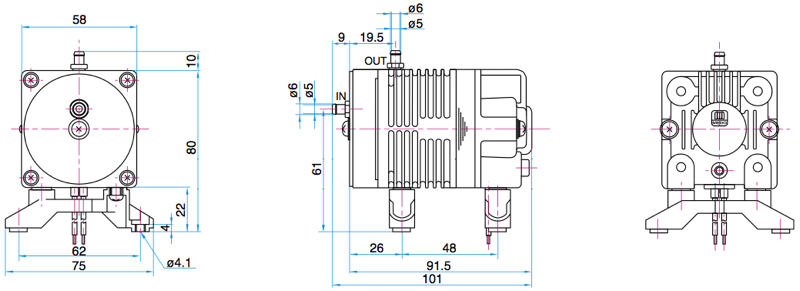

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0140
