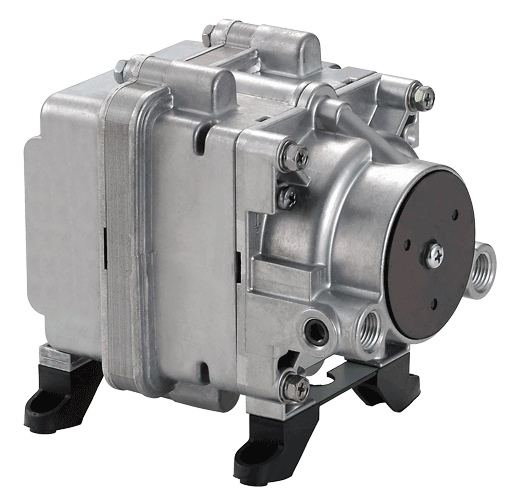

VP 0450

Download PDF

(194.26 KB)

Specifications

Attainable Vacuum: -667 mbar
Free Air Displacement: 18 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 35 W
34 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Inlet: ISO Rc 1/4 female threaded
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 85 x 88 mm
Gross Weight: 2.2 kg
Leadwire Length: 300 mm

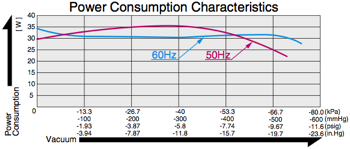

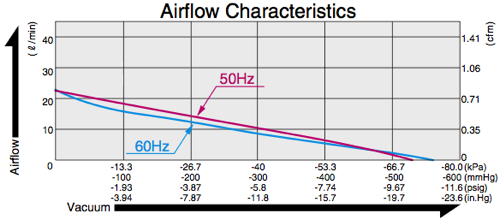

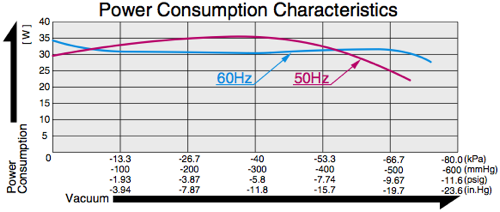

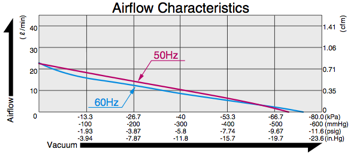

Airflow & Power Consumption
(click to enlarge)

Application Examples

Machine Screw Feeder
Medical Suction Cup

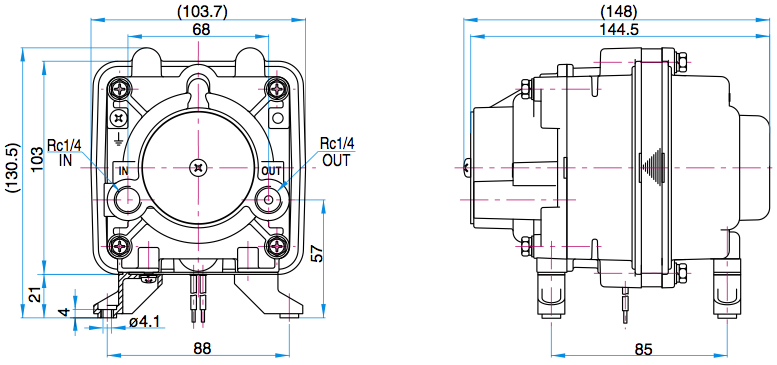

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0450
