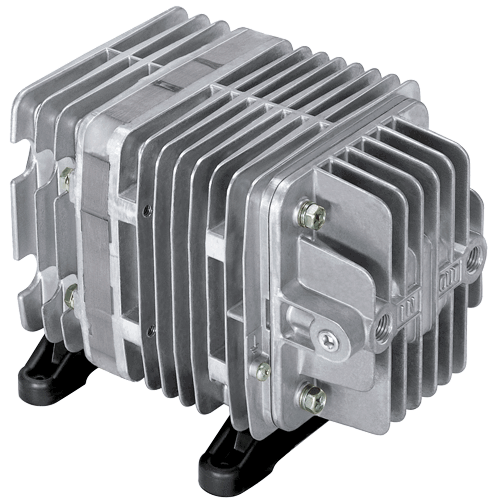

VP 0660

VP 0660


Click here to get your individual offer

Download PDF

(245.14 KB)

Specifications

Attainable Vacuum: -800 mbar
Free Air Displacement: 25 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 80 W
70 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 6.000 h
Inlet: ISO Rc 1/4 female threaded
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 102 x 130 mm
Gross Weight: 5.0 kg
Leadwire Length: 300 mm or 600 mm

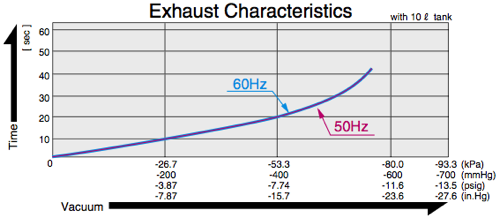

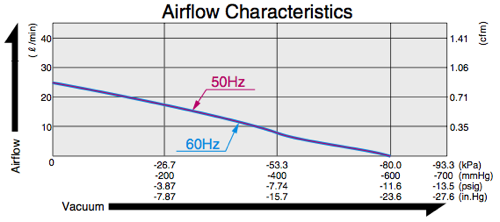

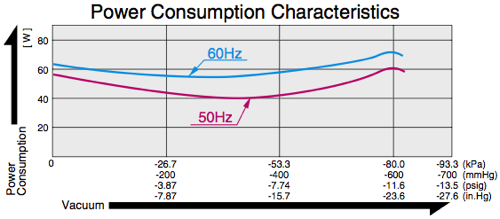

Airflow & Power Consumption
(click to enlarge)

VP 0660
VP 0660
VP 0660
Application Examples
VP 0660
VP 0660

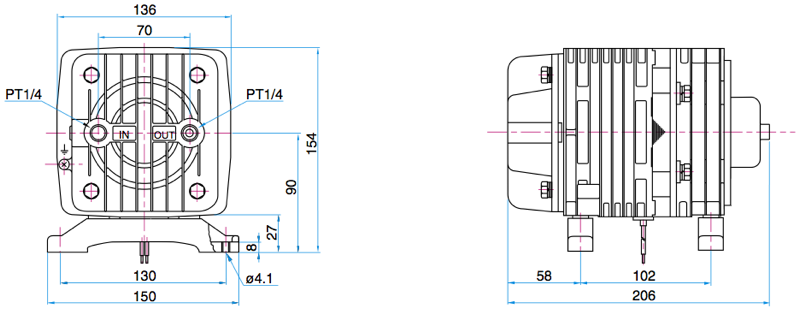

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0660
