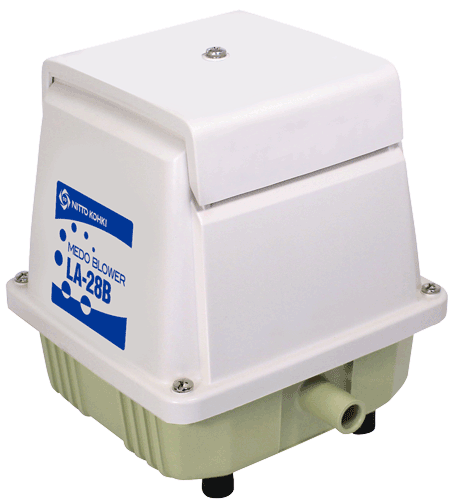

LA-28B

Download PDF

(212.51 KB)

Download Instruction Manual

(1.46 MB)

Specifications

Maintenance Video:
Power Supply:	230 V 120 V
Rated Frequency:	50 Hz 60 Hz
Rated Pressure:	0.11 bar
Operating Power Range:	0,05 - 0,2 bar
Airflow at Rated Pressure:	28 l/min
Power Consumption:	29 W 25.5 W
Weight:	2.9 kg

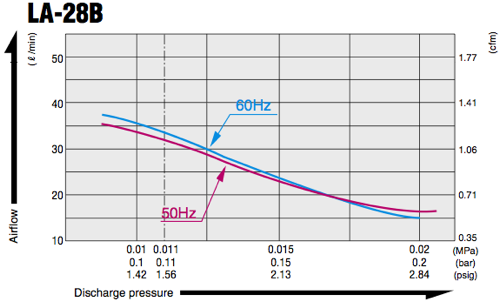

Airflow & Power Consumption
(click to enlarge)

Application Examples

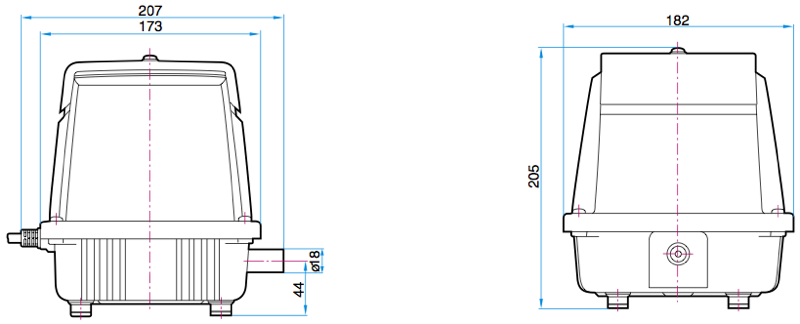

Sketch Drawing and Mounting Dimensions Diagram (mm)
