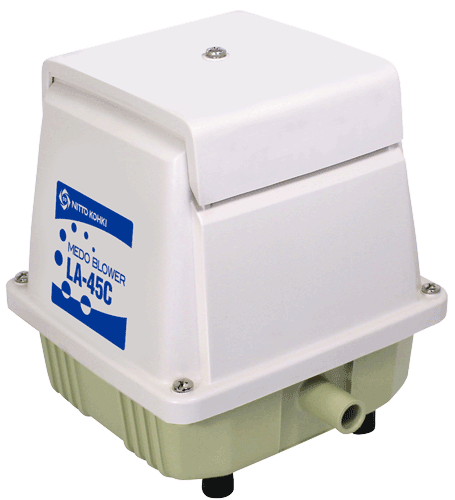

LA-45C

Download PDF

(212.51 KB)

Download Instruction Manual

(1.46 MB)

Specifications

Maintenance Video:

Power Supply: 230 V
120 V
Rated Frequency: 50 Hz
60 Hz
Rated Pressure: 0.11 bar
Operating Power Range: 0,05 - 0,2 bar
Airflow at Rated Pressure: 45 l/min
Power Consumption: 47 W
45 W
Weight: 3.0 kg

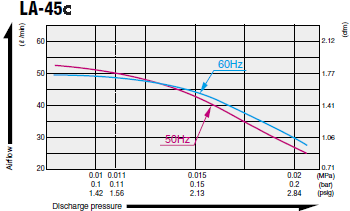

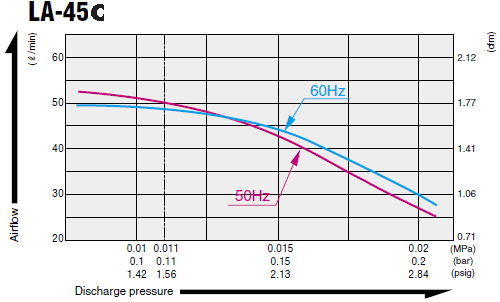

Airflow & Power Consumption
(click to enlarge)

Application Examples

Liquid Mixer Bubbling
Fish Farm Aquatic Fence

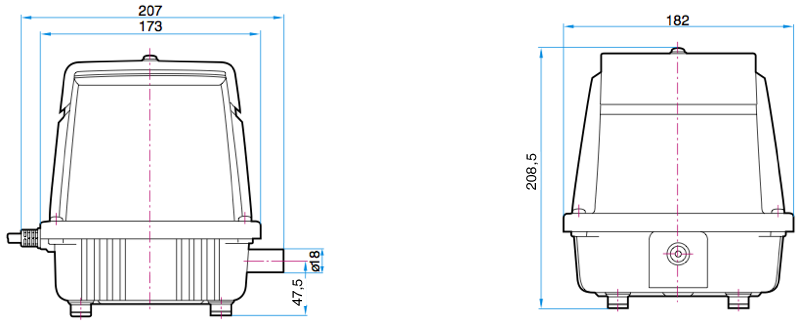

Sketch Drawing and Mounting Dimensions Diagram (mm)

LA-45C
