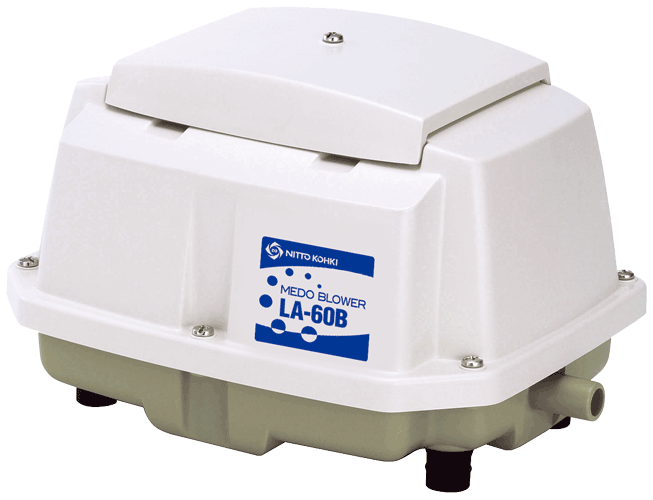

LA-60B

Download PDF

(215.99 KB)

Download Instruction Manual

(1.46 MB)

Specifications

Maintenance Video:
Power Supply:	230 V 120 V
Rated Frequency:	50 Hz 60 Hz
Rated Pressure:	0.15 bar
Operating Power Range:	0,05 - 0,2 bar
Airflow at Rated Pressure:	60 l/min
Power Consumption:	64 W 60 W
Weight:	5.0 kg

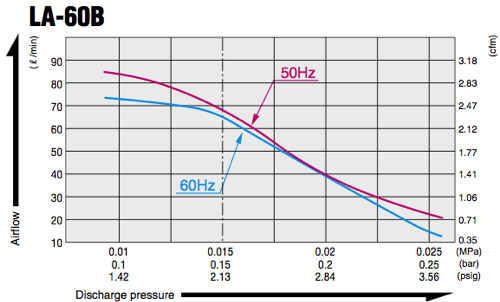

Airflow & Power Consumption
(click to enlarge)

Application Examples

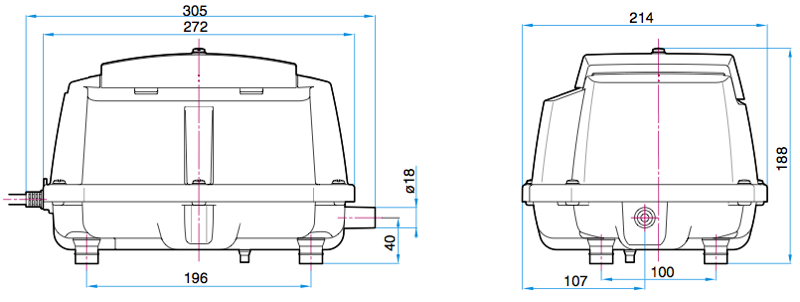

Sketch Drawing and Mounting Dimensions Diagram (mm)
