LA-200F

Download PDF

(2.28 MB)

Download Instruction Manual

(617.43 KB)

Specifications

Power Supply:	230/240 V
Rated Frequency:	50 Hz
Rated Pressure:	0.2 bar
Operating Power Range:	0,1-0,25 bar
Airflow at Rated Pressure:	200 l/min
Power Consumption:	195 W
Weight:	13.5 kg

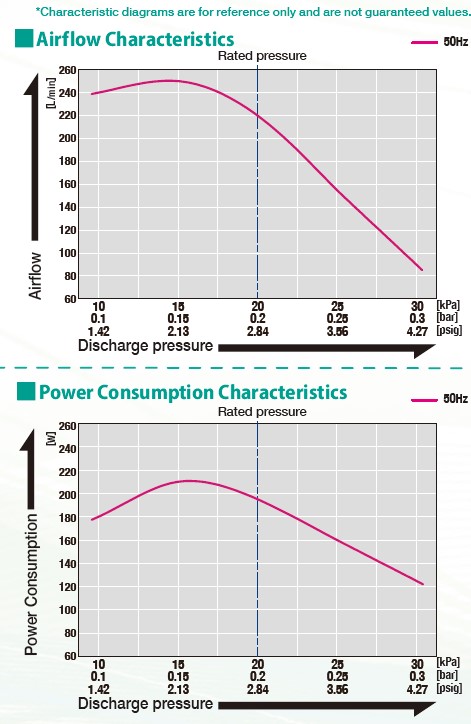

Airflow & Power Consumption
(click to enlarge)

Application Examples

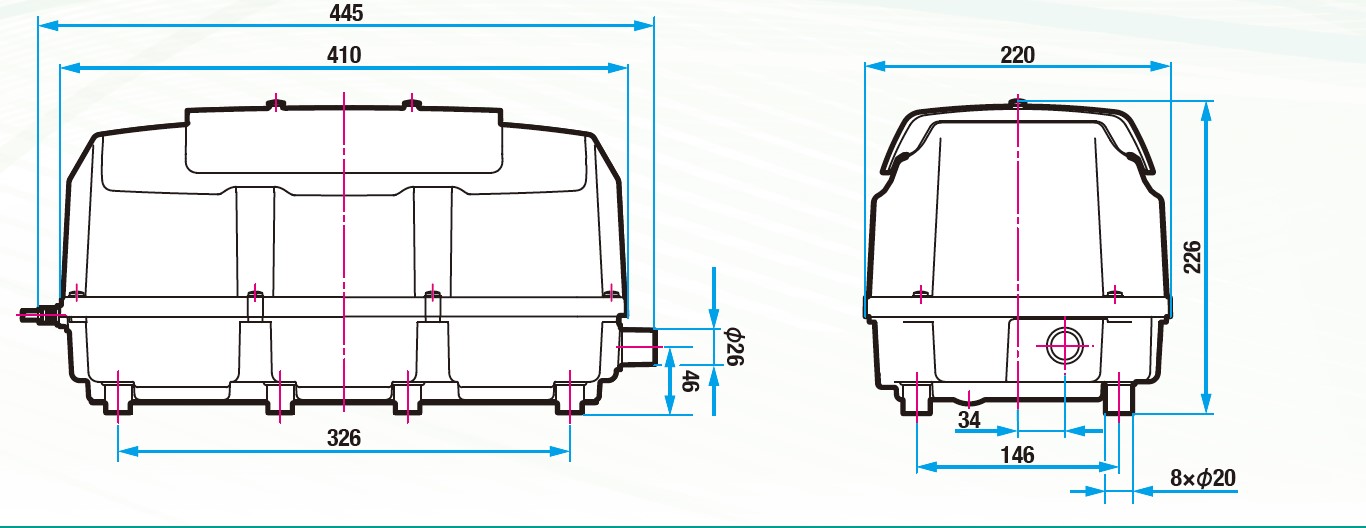

Sketch Drawing and Mounting Dimensions Diagram (mm)
