DAH 105

Download PDF

(142.19 KB)

Specifications

Rated Pressure: 0.5 bar
Rated Airflow: 2.5 l/min
Rated Voltage: 12 V
24 V
Maximum Pressure: 0.8 bar
Current (Mean Value): 0.74 A
0.35 A
Live Expectancy: 10.000 h
Outlet: 6 mm O.D. hose barb
Duty Cycle: Continuous
Coil Insulation Class: A or its equivalent (JETL)
Mounting Dimensions (L x W): 76 x 70 mm
Weight: 0.91 kg
Leadwire Length: 300 mm

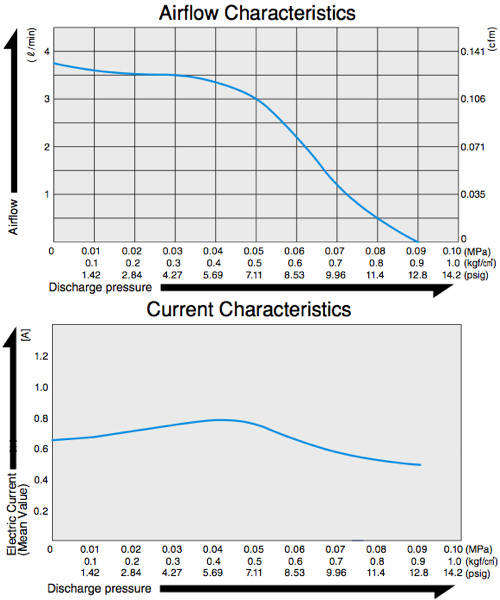

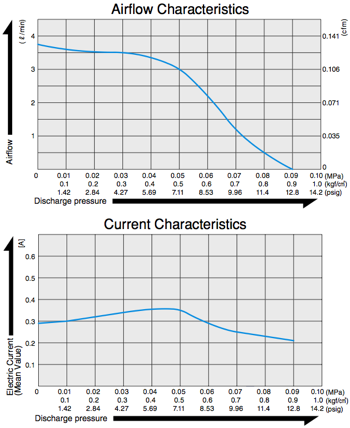

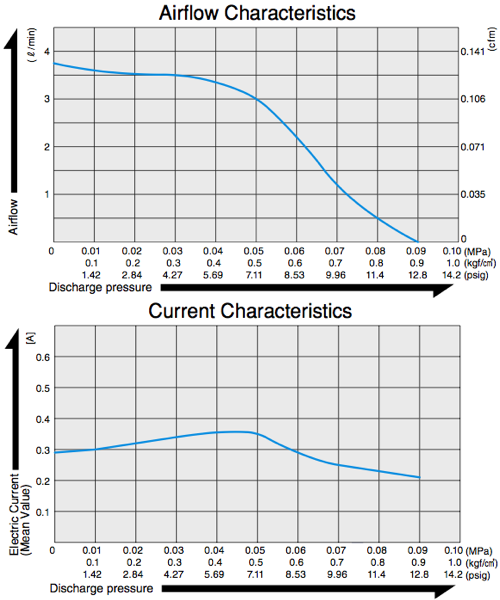

Airflow & Power Consumption
(click to enlarge)

12V

24V

Application Examples

Medical equipment
Analysers etc.

Sketch Drawing and Mounting Dimensions Diagram (mm)

DAH 105
