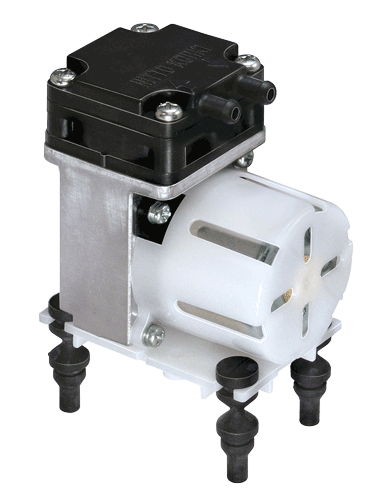

DP 0102H

Download PDF

(225.00 KB)

Specifications

Attainable Vacuum:	-507 mbar
Free Air Displacement:	4 l/min
Maximum Pressure:	0.8 bar
Maximum Current:	0.7 A
Rated Voltage:	12 V
Duty Cycle:	Continuous
Life Expectancy:	3.000 h
Inlet and Outlet:	6mm O.D. straight nipple
Coil Insulation Class:	E or its equivalent (JETL)
Mounting Dimensions (L x W):	50 x 30 mm
Gross Weight:	0.25 kg

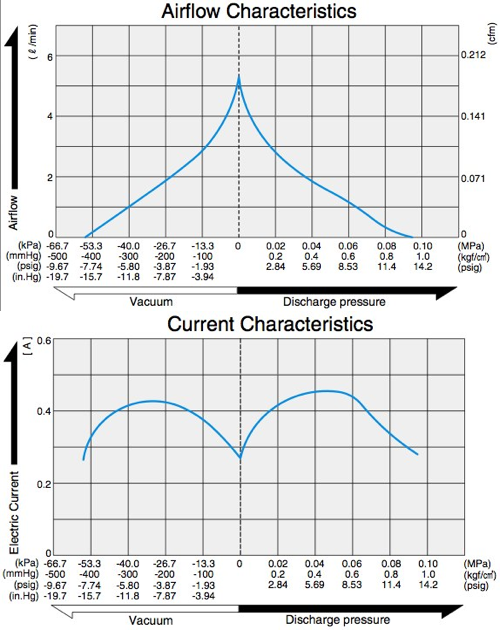

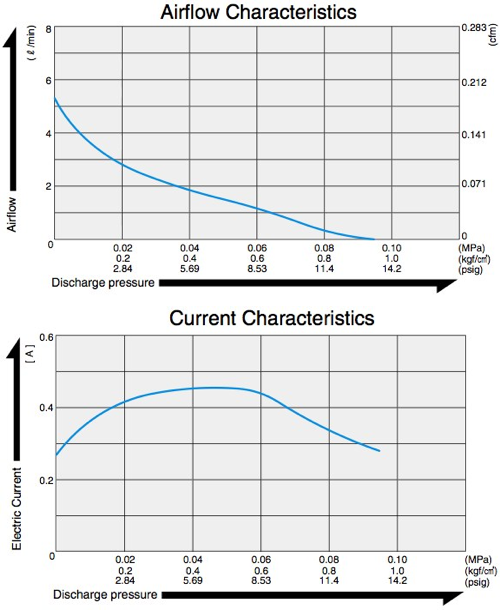

Airflow & Power Consumption
(click to enlarge)

Application Examples

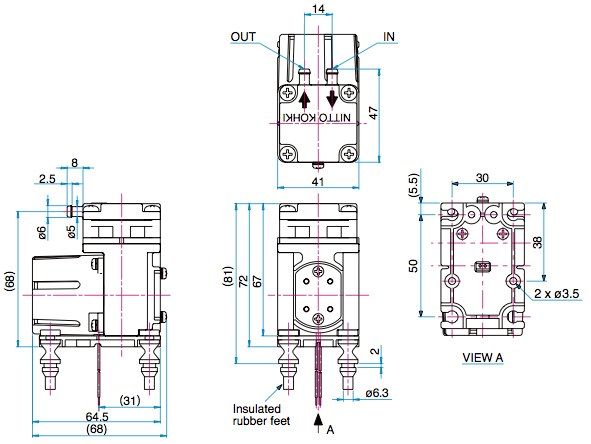

Sketch Drawing and Mounting Dimensions Diagram (mm)
