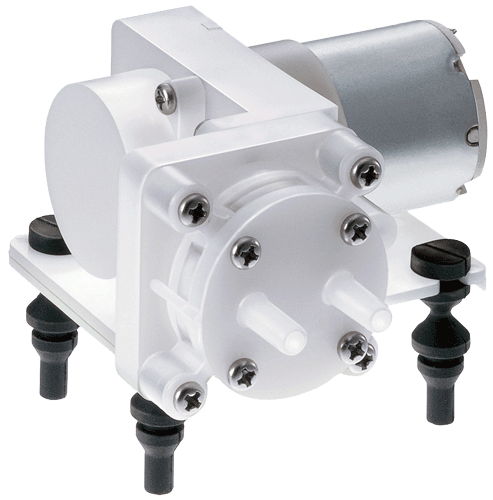

DP 0140

Download PDF

(207.81 KB)

Specifications

Attainable Vacuum: -533 mbar
Free Air Displacement: 4 l/min
Maximum Pressure: 0.5 bar
Maximum Current: 0.5 A
Rated Voltage: 12 V
Duty Cycle: Continuous
Life Expectancy: 500 h
Inlet and Outlet: 5mm O.D. straight nipple
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 52 x 36 mm
Gross Weight: 0.19 kg

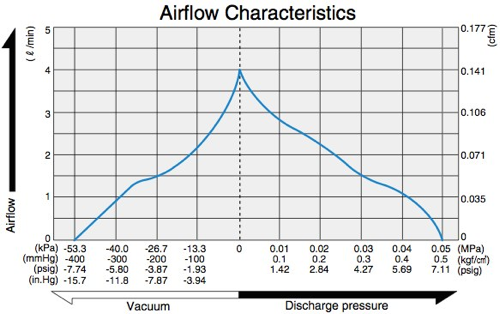

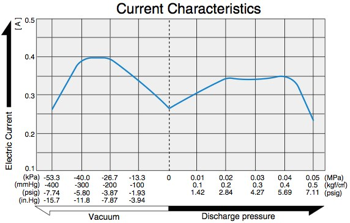

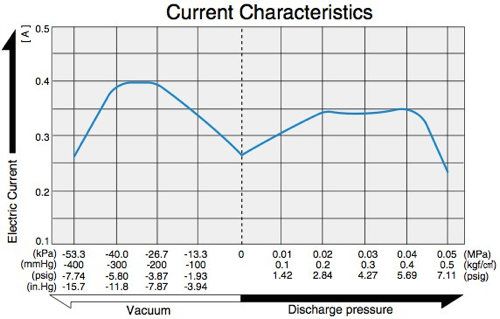

Airflow & Power Consumption
(click to enlarge)

Application Examples

Vacuum Tweezers
Blood Pressure Monitor

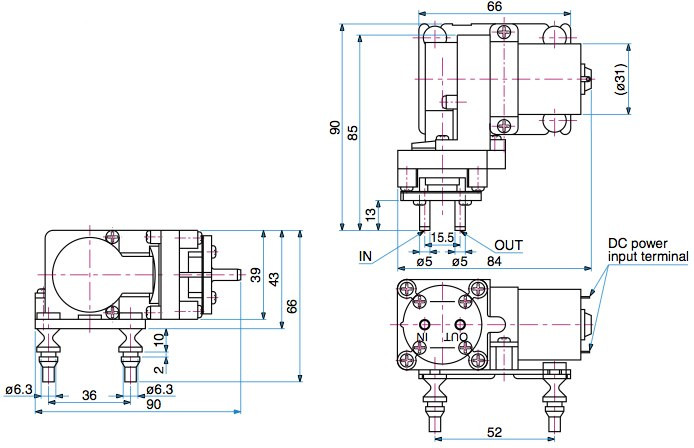

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0140
