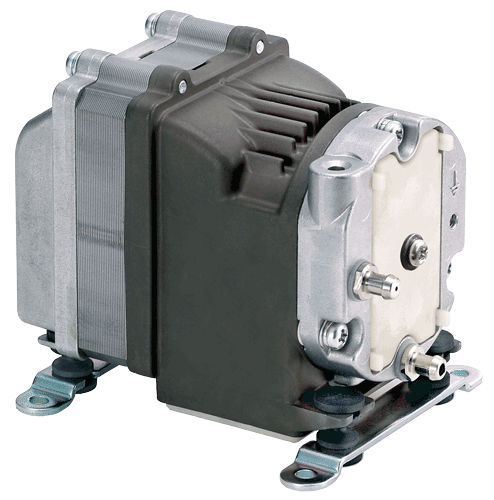

DVH 145

Download PDF

(187.81 KB)

Specifications

Attainable Vacuum: -400 mbar
Free Air Displacement: 3 l/min
Rated Voltage: 12 V
24 V
Current (Mean Value): 0.73 A
0.34 A
Life Expectancy: 10.000 h
Outlet: 6 mm O.D. hose barb
Duty Cycle: Continuous
Coil Insulation Class: A or its equivalent (JETL)
Mounting Dimensions (L x W): 76 x 70 mm
Gross Weight: 0.91 kg
Leadwire Length: 300 mm

Airflow & Power Consumption
(click to enlarge)

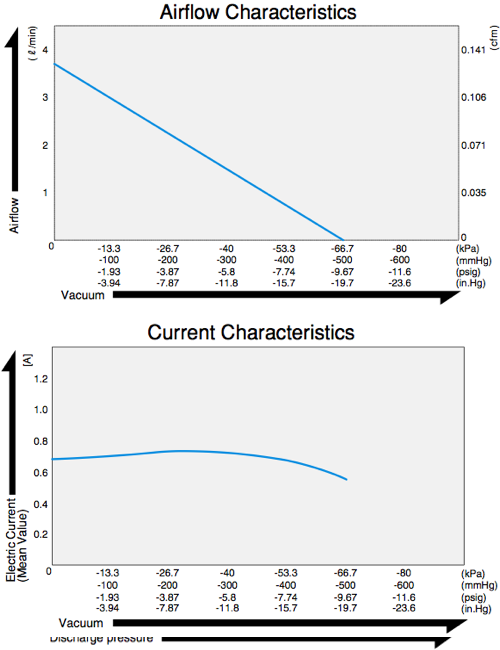

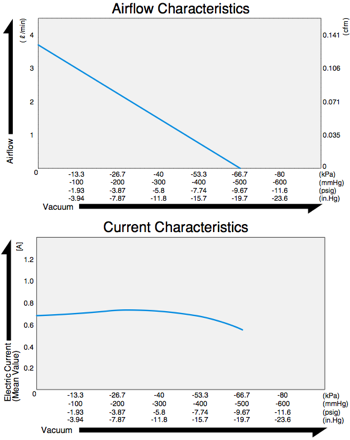

12V

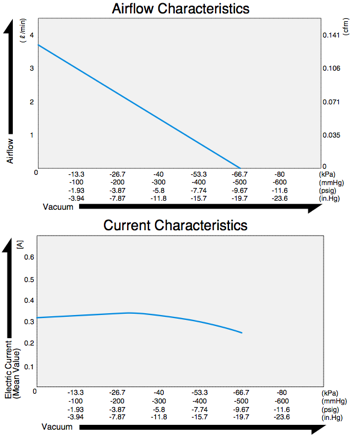

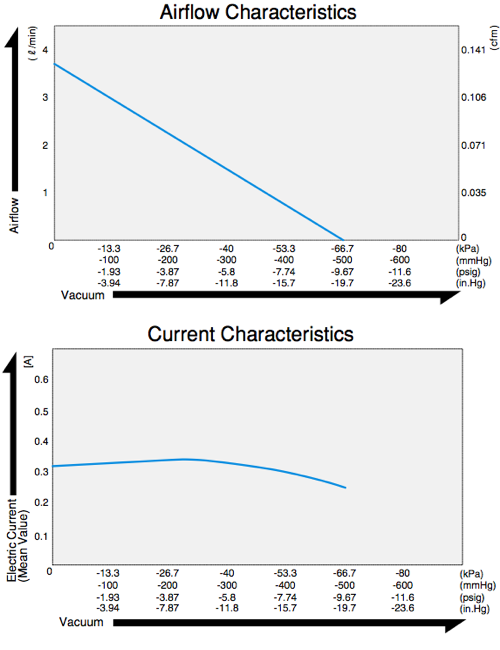

24V

Application Examples

Medical Equipment
Analyzers etc.

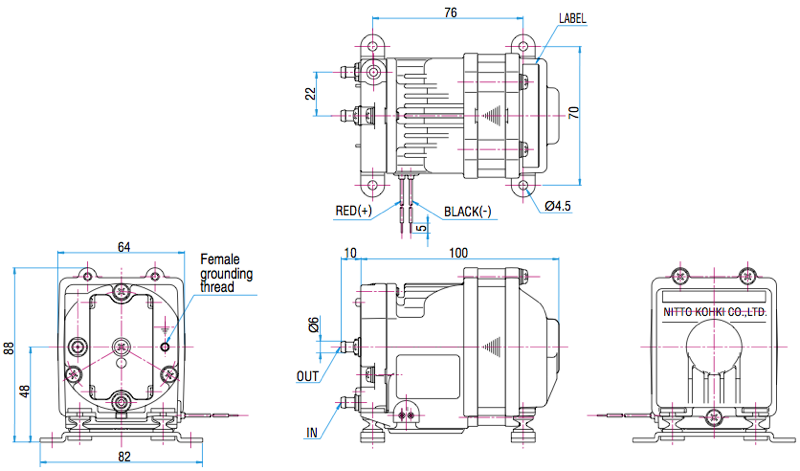

Sketch Drawing and Mounting Dimensions Diagram (mm)

DVH 145
