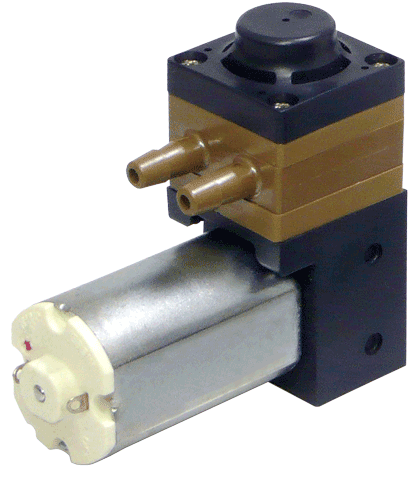

DPE-100

Download PDF

(178.02 KB)

Specifications

Rated Voltage: 24 V
Flow Rate: 100 ml/min
Working Pressure Range: 0 ~ 1000 mbar
Outlet Pressure: 3 bar
Self-Priming Pressure: 200 mbar
Maximum Current: 100 mA
Rated Operating Time: Continous
Life Expectancy: 500 h
Inlet and Outlet: 4.7 mm O.D. straight nipple
Insulation Classification: E calss equivalent
Mounting Dimensions (L x W): 9.5 x 17 mm
Gross Weight: 67 g
Motor: DC Brush Motor

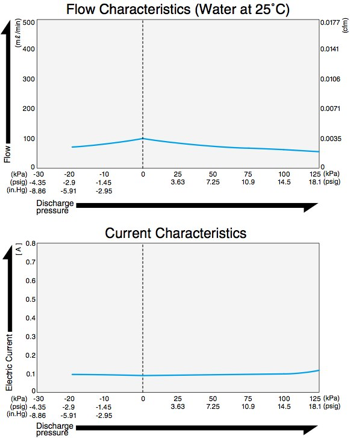

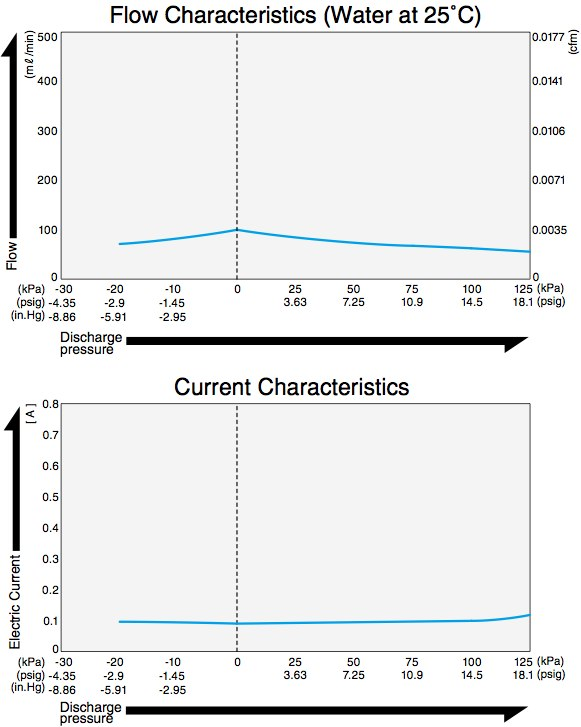

Airflow & Power Consumption
(click to enlarge)

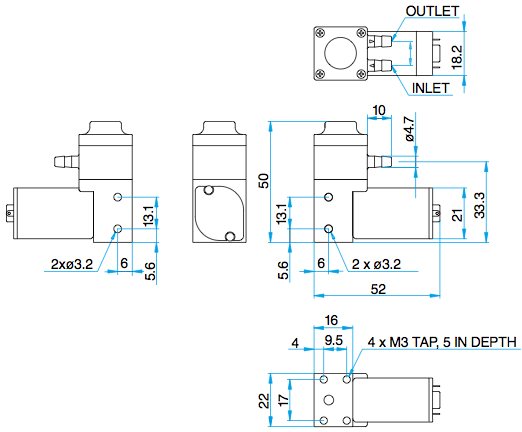

Sketch Drawing and Mounting Dimensions Diagram (mm)

DPE-100
