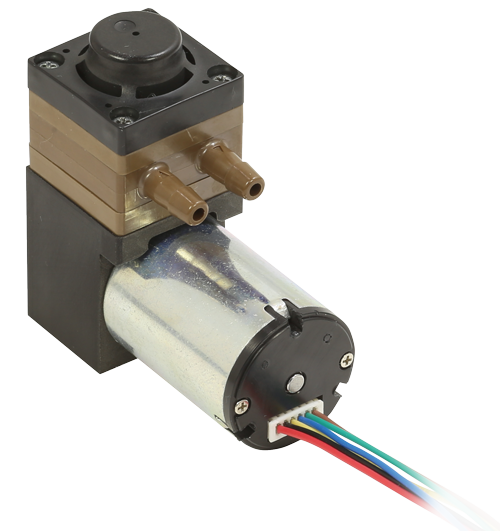

DPE-100BLC

Download PDF

(381.71 KB)

Ideal for transporting a small amount of chemical liquids precisely.
Built-in brushless DC motor with PWM control.

Specifications

Rated Voltage:	24 V
Flow Rate:	100 ml/min
Working Pressure Range:	0 ~ 1000 mbar
Outlet Pressure:	3 bar
Self-Priming Pressure:	100 mbar
Maximum Current:	90 mA
Rated Operating Time:	Continous
Life Expectancy:	6.000 h
Inlet and Outlet:	4.7 mm O.D.
Insulation Classification:	A or its equivalent (JETL)
Gross Weight:	80 g
Motor:	DC Brushless Motor

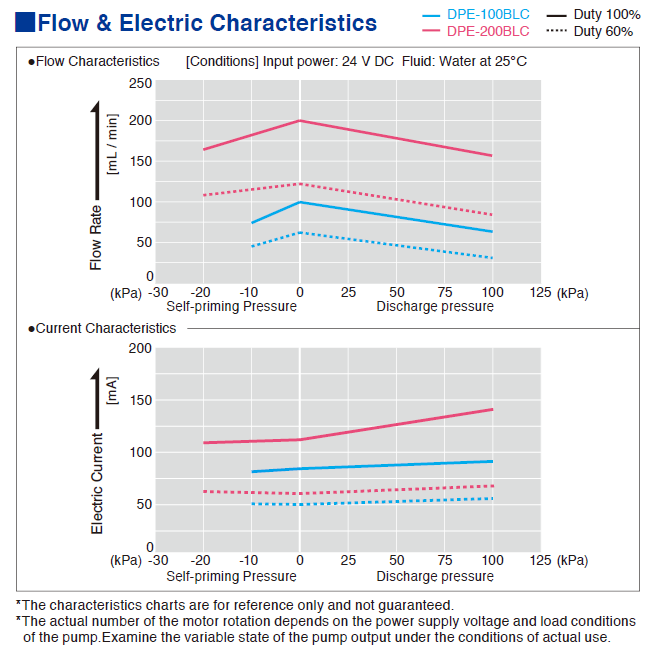

Airflow & Power Consumption
(click to enlarge)

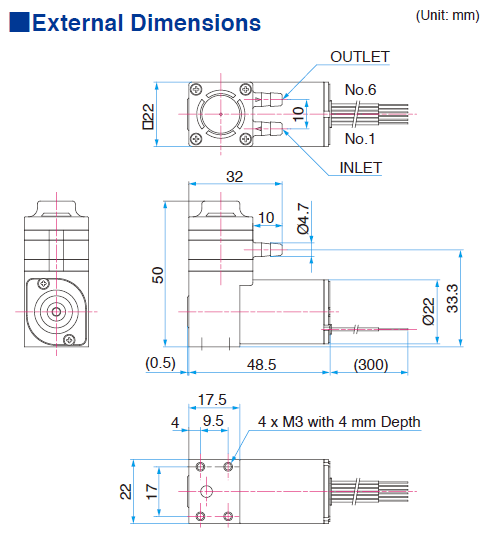

Sketch Drawing and Mounting Dimensions Diagram (mm)
