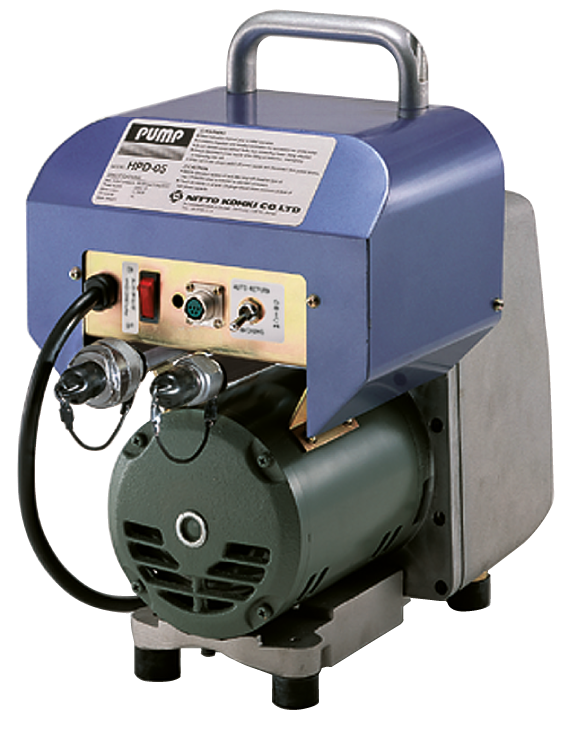

HPD-05

Cliquer ici pour avoir une offre individuelle

Download PDF

(155.66 KB)

Download Instruction Manual

(351.23 KB)

Hydraulic Pump for our Punching Machines.

Double-Acting.

Spécifications

Power Source (Single Phase):	110 V AC 60 Hz / 220 V AC 50 Hz
Max. Output Pressure:	68.65 MPa
Output (At No load):	1.44 l \ min / 1.20 l \ min
Output (At 68.65MPa):	0.66 l \ min / 0.55 l \ min
Motor:	0.4 kW 4P
Reservoir Capacity:	4.0 l
Discharge Port:	Rc 3/8"
Electro-Magnetic Valve:	4 way 3 position valve
Mass (Weight):	32.5 kg
