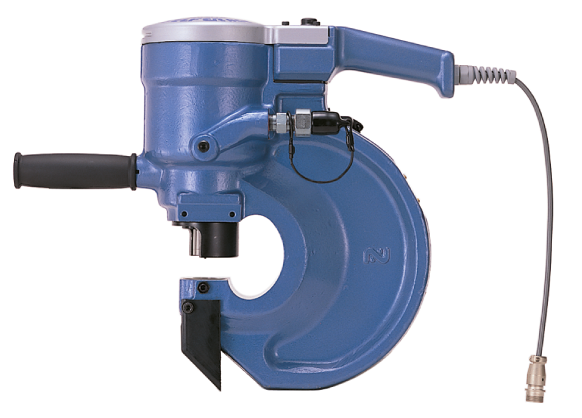

HS07-1624

Cliquer ici pour avoir une offre individuelle

Download PDF

(155.66 KB)

Download Instruction Manual

(2.53 MB)

New design adopted for punching stainless steel.
Inching function as standard.
25mm and 26mm dia. holes are possible with optional parts.

Spécifications

Max. Punching Thickness:	16 mm
Hole Making Time (Punching):	11.8 sec.
Hole Making Time (Returning):	5.7 sec.
Allowable Max. Pressure:	68.65 MPa
Max. Punching Diameter:	24 mm
Ram Stroke:	25 mm
Max. Throat Depth:	70 mm
Max. Output:	464 kN
Weight:	25.5 kg
Standard Accessories:	Download PDF
