VC 0101 (Dual)

PDF à Télécharger

(203.81 KB)

Spécifications

Vide maximum: -100 mbar (230 V)
-187 mbar (120 V)
Débit d´air nominal: 10 l/min
Tension nominale: 230 V
120 V
Pression de service: 0.15 bar (230 V)
0.18 bar (120 V)
Pression d´utilisation: 0.1 bar
Puissance consommée: 11 W
11 W
Fréquence nominale: 50 Hz
60 Hz
Durée de vie: 5.000 h
Pression d´utilisation: -100 mbar to 0.15 bar (230 V)
-187 mbar to 0.18 bar (120 V)
Outlet (Inlet): 7.5mm O.D. hose nipple
Type de courant: Continuous
Classe d'isolation: B for 230V & A for 120V or its equivalent (JETL)
Dimension pour le montage (L x W): 66 x 100 mm
Poids brut: 0.82 kg
Longueur des câbles: 200 mm

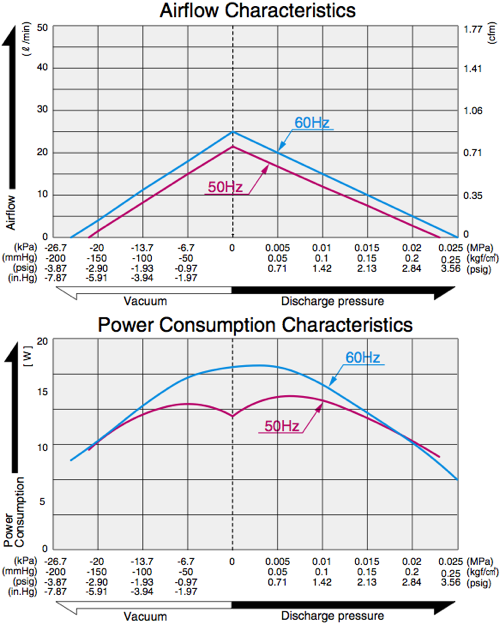

Airflow & Power Consumption
(click to enlarge)

Application

VC 0101 (Dual)
VC 0101 (Dual)

Sketch Drawing and Mounting Dimensions Diagram (mm)

VC 0101 (Dual)
